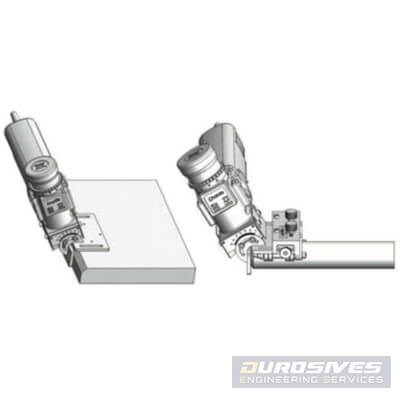

CHAMFO One Touch Bevel Machine Model : GTW-1000W Weld preparation for small pipe & plate ((For small pipe bevel – up to 6C)) SPECIFICATIONS Brand CHAMFO Bevel Adjustment One-touch spline controller Adjustment increments minimum 0.1mm step Usages Plate & Pipe’s beveling for weld preparation Min. Pipe size 15A (21.7mm or 1/2″) ~ 250A (267.3mm or 10″) Weight / Power 3.2kg / 850W Inserts Tip Q’TY / PN 3 / CFWB080350 / CFWB080149 Applications Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials Maximum Bevel range per angle (30° ~ 90°) Angle Thickness, mm (inch) Width, mm (inch) 30° 15mm (0.591) 17mm (0.669) 45° 10mm (0.394) 15mm (0.591) 75° 2.8mm (0.110) 11mm (0.433) 90° 7.5mm (0.295) 11mm (0.433) Full Brochure Download Specifications Cutting & Beveling Maximum Bevel Adjustment Adjustment increments Usages Pipe Size Weight / Power Inserts Tip Q’TY / PN Applications Brand Related Product S-Cutter Semi-Automatic pipe cutting/bevel machine Model : S-500 S-Cutter Portable Tungsten Grinder , Model : S-TGR / S-TGF CHAMFO Pneumatic Chamfer/Radius Machine Model : GT-38 series
