S-Cutter Portable Square Facing Machine, Model : S-EMO

Ultra light Portable Square Facing machine for tubes. Precision facing (min scale of 0.05mm accuracy) with little/no vibration operation.

  • Using a rechargeable motor(Ultra-light)
  • Light and no vibration
  • Precise facing(minimum scale is 0.05mm)
  • Providing the vertical and precise processing surface(no burr)
  • High-capacity battery equipped(S-EM1.0)
  • Brush Less motor equipped (S-EM1.0)
  • Tool designed for easy tip-out
  • Usage of Insert tip

Enable you to use 4 surfaces (Titanium coating) / Long-lived and high strength insert tip

Machine Specifications
Model Specification
S-EM0.5 Rating 10.8V, 2Ah
Speed 0 – 400RPM
Capacity 1/4, 3/8, 1/2inch (6.35, 9.53, 12.7mm)
Weight 1.25kg(including battery)
S-EM1.0 Rating 18V, 5Ah
Speed 0 – 500RPM
Capacity 1/4,3/8,1/2,3/4, 1inch (6.35, 9.53, 12.7, 19.5, 25.44mm)
Weight 2.3kg(including battery)

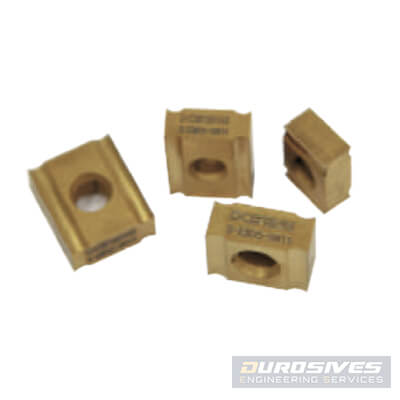

Insert Tip Specification
Insert Tip Model
S-EM05_0811 S-EM0.5
S-EM10_1412 S-EM1.0


  • Full Brochure Download
