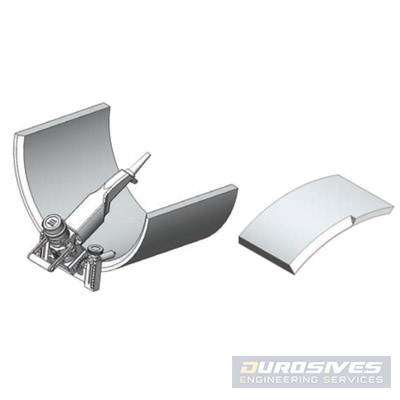

CHAMFO One Touch Bevel Machine Model : GTW-2800PT Weld Preparation for pipe, (For curved plate, pipe/plate bevel – up to 19C) SPECIFICATIONS Brand CHAMFO Bevel Adjustment One-touch spline controller Adjustment increments minimum 0.1mm step Usages Internal / external pipe, plate & curved surface plate beveling O/D : min. 420mm I/D min.700mm (18C), 800mm (19C), 1000mm (20C) or bigger Weight / Power 15.8kg / 2600W Inserts Tip Q’TY / PN 4 / CFWB140350 / CFWB140149 Applications Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials Maximum Bevel range per angle (30° ~ 90°) Angle Thickness, mm (inch) Width, mm (inch) 0° 35mm 14mm 15° 33mm 34mm 30° 28mm 32mm 45° 20mm 28.5mm 75° 3.6mm 14mm 90° 14mm 15mm Full Brochure Download Specifications Cutting & Beveling Maximum Bevel Adjustment Adjustment increments Usages Pipe Size Weight / Power Inserts Tip Q’TY / PN Applications Brand Related Product CHAMFO Pneumatic Chamfer/Radius Machine Model : GTL-38SC CHAMFO Auto feeding pipe bevelling machine Model : GTW-2100P-AF CHAMFO Pneumatic Chamfer/Radius Machine Model : GT-38 series
