CHAMFO Portable Beveling Machine Model : GTW-700W

Portable Beveling machine for Plate for weld preparation


– Plate work : min. 1mm or bigger

– Wide Angle Adjustment from 15° to 15° without any other additional parts.

– Maximum Beveling Amount up to 5 mm (thickness) at 45°.

– Patented One-touch Controller :

Adjustment depth min. 0.1mm / Prevent in advance to be changed beveling amount due to vibration while operation / Only takes one second to adjust beveling amount and lock it.

– Spindle moving system: the first in the world! Minimize weight with self-developed technology (the best cutting efficiency and the lightest within the same specification of beveling machine).

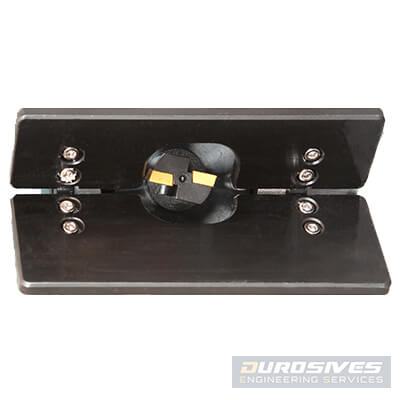

– Optimized Face-mill Cutter :

Easy to use, Quick work and Excellent cost savings, than existing Beveller (Peripheral milling type) or Grinder.

Excellent working efficiency in the case of cutting steel, stainless steel(STS/SUS) and high yield structural steel(ATOS80) etc., due to reduces the contacted cross-sectional area of about 80% compared to Peripheral milling type of Beveller.

– Clean surface finish

GTW-700W Specs

Height Adjustment One-touch spline controller
Adjustment increments minimum 0.1mm step
Usages Plate beveling for weld preparation
Maximum Bevel range Deg. / 45° Thickness (inch) / 5 mm (0.197) Width (inch) / 15 mm (0.276)
Weight 2.8kg
Power 700W
Inserts 2EA (CFWB080350 / CFWB080149)
Applications Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials
