Chamfo Profile Bevel Cutting Machine Model : GTI-1200

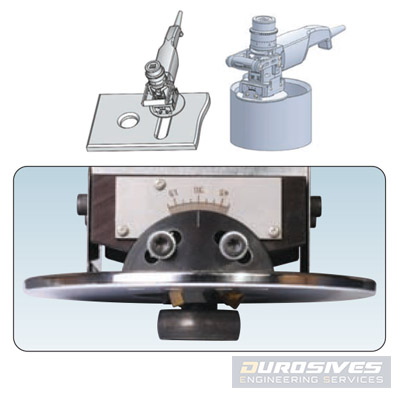

Weld preparation for plate & inner pipe (For profile bevel, int/ext bevel – up to 9C)

SPECIFICATIONS
Brand	CHAMFO
Bevel Adjustment	One-touch spline controller
Adjustment increments	minimum 0.1mm step
Usages	Plate and pipe beveling (Curve and Hole)
Weight / Power	6.0 kg / 1700W (or 1400W)
Pipe size	min. 36 mm (I/D)
Inserts Tip Q’TY / PN	3 / APMT-1604PDSR-MM

Maximum Bevel range per angle – T type (20° ~ 30° – 45°)
Angle	Thickness, mm (inch)	Width, mm (inch)
20°	5.5 mm (0.217)	5.8 mm (0.228)
30°	9 mm (0.354)	10.4 mm (0.409)
45°	9.3 mm (0.366)	13 mm (0.512)

Maximum Bevel range per angle – F type (30° ~ 45° – 60°)
Angle	Thickness, mm (inch)	Width, mm (inch)
30°	5.4 mm (0.213)	6.2 mm (0.244)
45°	9.2 mm (0.362)	13.0 mm (0.512)
60°	5.4 mm (0.213)	6.2 mm (0.244)
