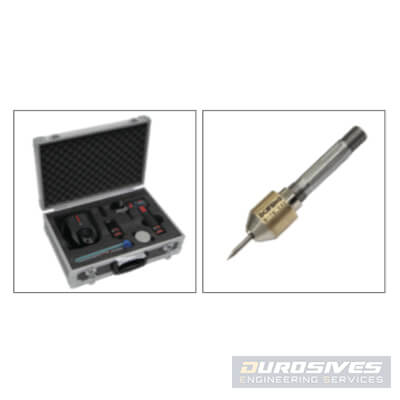

S-Cutter portable Tungsten Grinders are ultra light-weighted and designed to use in workshop or at work site. Comes in 2 different model (fixed angle or adjustable angle) to suit different users.
- Using a rechargeable motor(Ultra-light)
- Precise grinding, cutting and facing
- Including the precision setting device
- Usage of diamond wheel
- Economic improvement by using double-sided and with cutting function
- Select the diamond wheel roughness depending on the electrode bar specification
- Automatic concentric function
- Improved convenience by marking cut scale
- One-touch lock function is applied when changing diamond wheel
- Two models, angle fixed type(S-TGF) and angle adjustable type(S-TGR)
- Multi-function collet application
- No need to use jig depending on the specification of electrode bar
- Electrode bar can be sharpened, even if it is stuck when welding
- Non-standard electrode bar is available
- The minimum length of electrode bar to be ground is 15mm
| Machine Specifications | ||
|---|---|---|
| Model | Specification | |
| Common | Rating | 10.8V,2Ah |
| Speed | 19500RPM | |
| S-TGR | Included angle | 15° – 120° – 180° |
| Capacity | 0.5ø – 3.2ø | |
| Weight | 0.89kg(including battery) | |
| S-TGF | Included angle | 15°, 22.5°, 30°, 36°, 45°, 60°, 90°, 120°, 180° |
| Capacity | 0.5ø – 3.2ø | |
| Weight | 0.99kg(including battery) | |

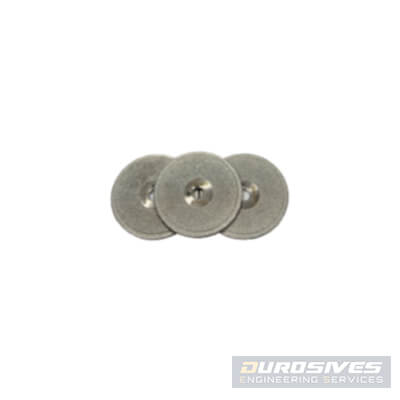

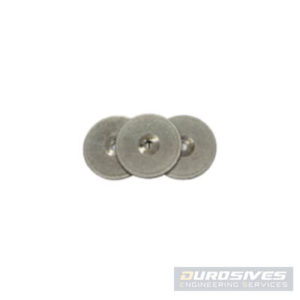

| Wheel Specifications | ||
|---|---|---|
| Model | Electrode bar | |
| S-TG_40RG | 2.4ø – 3.2ø | |
| S-TG_40SG | 1.6ø – 2.4ø | |
| S-TG_40FG | 0.5ø – 1.6ø | |
