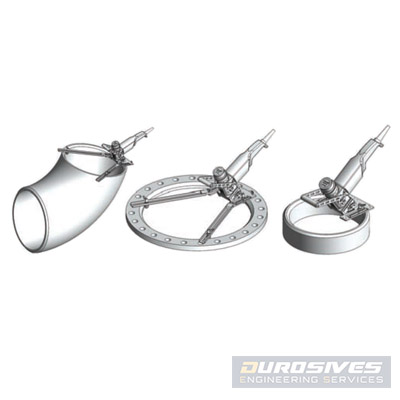

CHAMFO One Touch Bevel Machine Model : GTW-2100IW (Internal bevel for flange) Beveller for Weld Preparation (For flange application – up to 15C) SPECIFICATIONS Brand CHAMFO Bevel Adjustment One-touch spline controller Adjustment increments minimum 0.1mm step Usages Beveling of the Pipe and Flange (I/D and O/D), Plate and Circular plate Min. Pipe Size 190mm (O/D) / 330mm (I/D) Weight / Power 7.2 kg / 1700W or 1400W Inserts Tip Q’TY / PN 3 / CFWB110350 / CFWB110149 Applications Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials Maximum Bevel range per angle (30° ~ 90°) Angle Thickness, mm (inch) Width, mm (inch) 30° 23mm (0.905) 26.5mm (1.043) 45° 15mm (0.591) 22mm (0.866) 75° 3.2mm (0.126) 12.5mm (0.492) 90° 11.5mm (0.4535) 12.5mm (0.492) Full Brochure Download Specifications Cutting & Beveling Maximum Bevel Adjustment Adjustment increments Usages Pipe Size Weight / Power Inserts Tip Q’TY / PN Applications Brand Related Product CHAMFO Pneumatic Chamfer/Radius Machine Model : GT-38 series CHAMFO One Touch Radius Cutting Machine Model : GTR-3EC CHAMFO Profile Bevel Cutting Machine Model : GTI-1200
