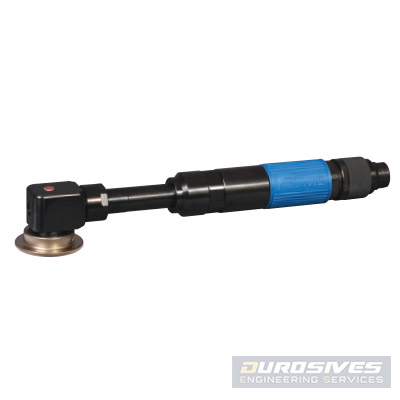

GTL-38SC

CHAMFO Pneumatic Chamfer/Radius Machine Model : GTL-38SC

SPECIFICATIONS
Brand	CHAMFO
Adjustment Increment	min. 0.16 mm step
Usage	Chamfering/Radius chamfering at reach-to-difficult places (narrow spaces)
Dimension	Length: 323mm / Height: 55mm / Width of base plate: 54mm
Weight	1.45kg
Air Pressure / Consumption Rate	6kg/cm² \| 0.3m³/min
Cutter	Model: GTL-38S (chamfering) PN: CF38LLC Bevel Angle: 45 degree Bevel Range: 0~1C Model: GTL-38R (Radius chamfering) PN: CF38LCR2/CF38LCR3 Bevel Angle: - Bevel Range: R2,R3
Applications	+Mild Steel, Non-ferrous metal, etc
Requirement	Hole diameter: min. 16mm (inner hole requires min. 21mm aside space to handle) Over 56mm (H1: 48mm, H2: 55mm)

read more

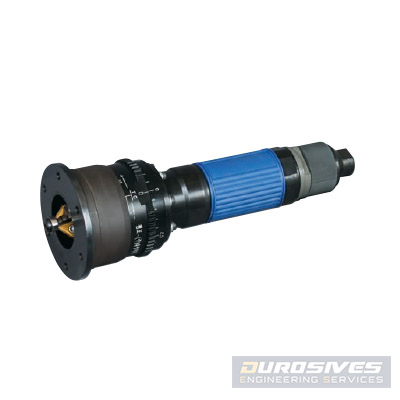

GT-50TRC

CHAMFO Pneumatic Chamfer/Radius Machine Model : GT-50TRC

SPECIFICATIONS
Brand	CHAMFO
Height Adjustment	One-touch spline controller
Adjustment Increment	min. 0.1 mm step
Weight	1.5kg
Compressed air pressure	6kg/cm² \| 0.3m³/min
Insert	No. of Insert: 2 - C:CF100iC / R:CF100iR2 CF100iR3
Range of Chamfering	0~3C / R2,R3
Min. Thickness	4mm(0.5c) / 4.5mm(1C) / 5.5mm(2C) / 6.5mm(3C) / 6mm(2R) / 7mm(3R)
Applications	Plate, curve, hole (min. Ø10.5) radius and straight chamfering

read more

CHAMFO Pneumatic Chamfer/Radius Machine Model : GT-38 series

SPECIFICATIONS
Brand	CHAMFO
Bevel Type	Chamfer (45 °)	0 ~ 1.5C
	Fillet (Radius)	-
	Min. thickness (GT-38S & GT-38R)	3mm (0.5C) / 3.5mm (1C) / 4mm (1.5C) / 4mm (1R) / 4.5mm (1.5R( / 5mm (2R)
	Corner (with Rotary bar)	Acute / right angle chamfering
Bevel Adjustment	One-touch Spline Controller
Adjustment Increment	min. 0.1 mm step
Inserts	Chamfer (45 °) (2ea)	DCMT070204
	Fillet (Radius) (2ea)	CF38iR1 CF38iR1.5 CF38iR2
	Corner (Rotary burr 1 ea)	SK-1M-GT
Compressed air pressure / consumption rate	6kg/cm³ / 0.3m³/min
Weight	1.2kg
Straight Line (plate)	O
Flat Shape	O
Hole	O
Inner corner of acute angle (min30°)	O
Radius	O

read more

GTR-3EC

CHAMFO One Touch Radius Cutting Machine Model : GTR-3EC

Electric radius chamfering machine

SPECIFICATIONS
Brand	CHAMFO
Height Adjustment	One-touch spline controller, minimum 0.1mm step
Usage	Radius bevelling of plate, contour and hole
Power	220V/60Hz only
RPM	Variable speed
No. of cutters	1 cutter (8 blades)
Cutter	CF350C R2, R3, R4, R5
Turning base plate	O
Cutter ejection pins	O
Spindle lock	O
Straight guide (option)	available
Weight	3kg
